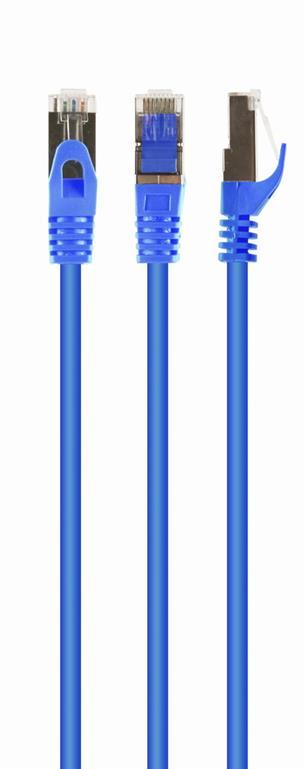

OPCC05 LAN Patch Cord PP6A (Cat6A FTP, LSZH)
Cat6A LSZH patch cord with foil-shielded pairs, braided cable, molded strain reliefs and snagless boots.
- Reference SKU
- OPCC05
Get a fixed DDP price from the closest regional hub — typically within one business day.
Overview
FTP Cat.6A LSZH patch cord with foil-shielded pairs and braided cable, gold-plated contacts and a Low Smoke Zero Halogen (LSZH) jacket with molded strain reliefs and snagless boots.
The LSZH jacket meets safety requirements for public areas such as corridors, lobbies and conference spaces, and long lengths up to 60 m cover equipment-room runs.
Key highlights
- Cat6A
- LSZH jacket
- 2 m – 60 m lengths
- MOQ 100 pcs
Full technical specifications
| Length | 2 / 3 / 5 / 7.5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 m |
|---|---|
| Category | Category 6A |
| Type | FTP (foil-shielded pairs, braided) |
| Frequency bandwidth | Max. 250 MHz |
| Compliance | ANSI / TIA / EIA-568B |
| Conductor | AWG 26 (7 × 0.15 mm wire), CCA |
| Conductor insulation | HDPE 0.85 mm |
| Jacket material | LSZH (Low Smoke Zero Halogen) |
| Strain relief | Molded, snagless boots |
| Certificates | RoHS, CE, ISO 9002, VDE |
| MOQ | 100 pcs |
